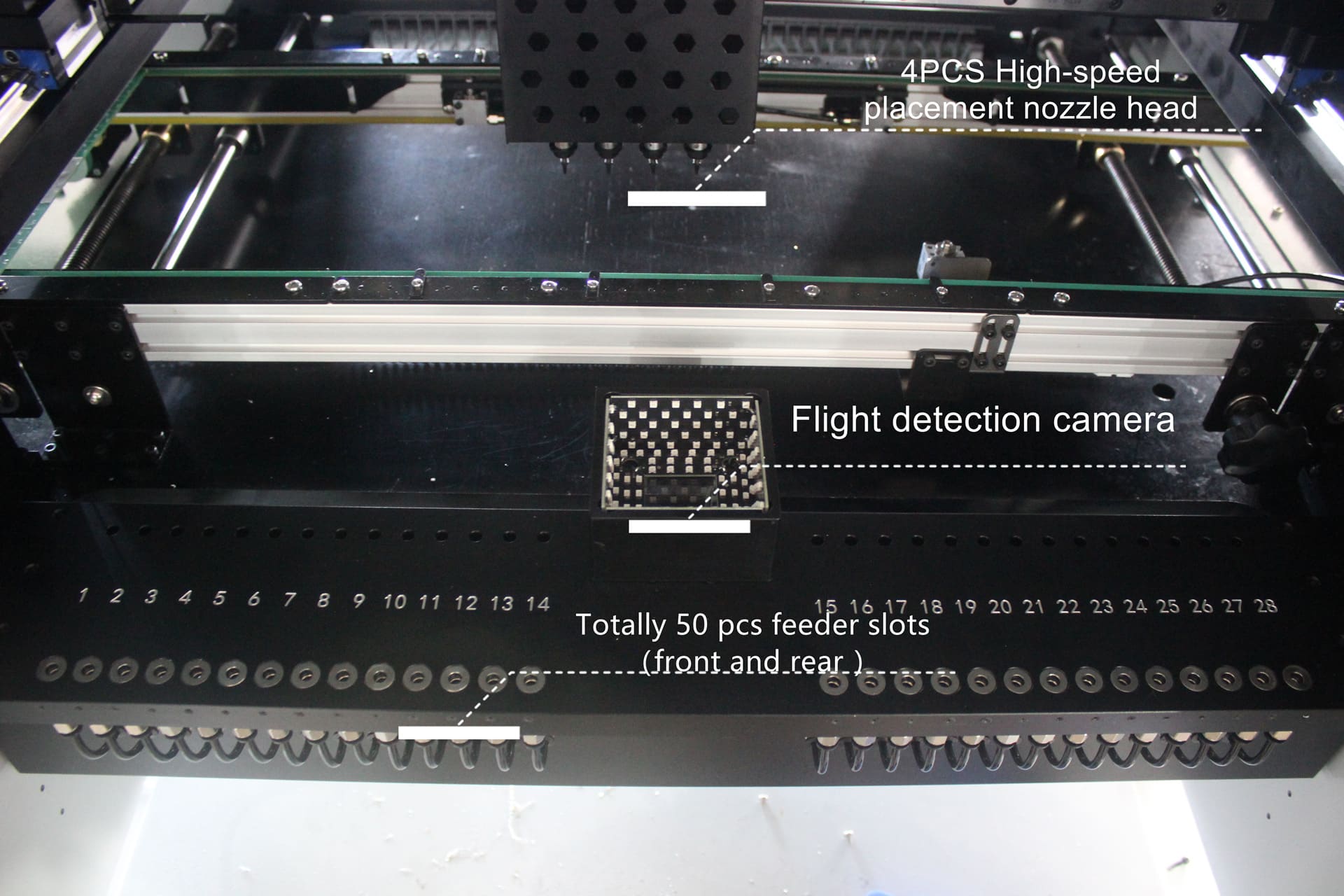

TVM925S feeder slots CAMERA A PNP tvm802a tvm802b tvm802ax tvm802bx tvm802c tvm802d tvm802as tvm802b s ql41 qm41 tvm925 tvm926 qm61 qm81 qm10_1920X1280

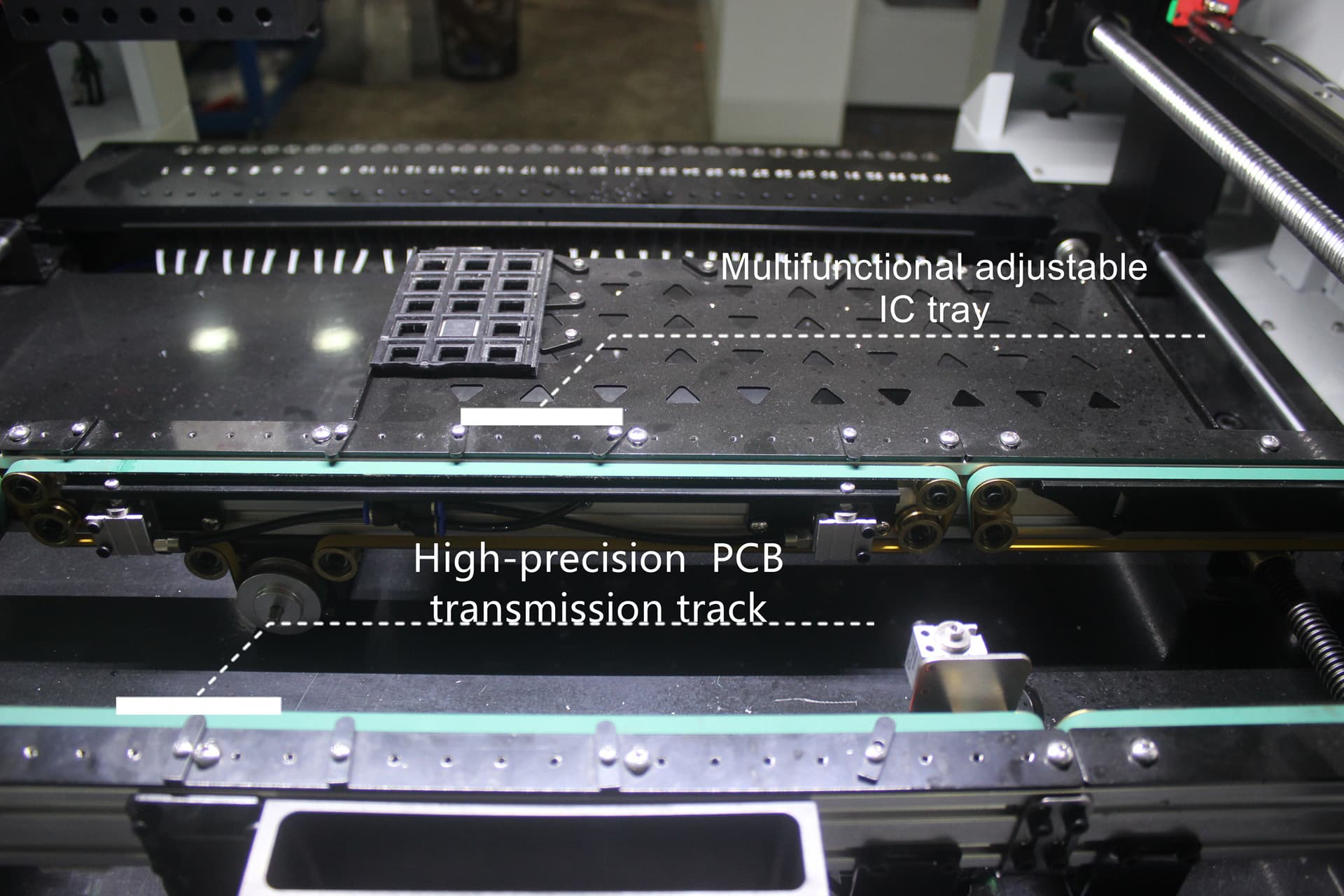

TVM925S TVM926S IC TRAY PNP tvm802a tvm802b tvm802ax tvm802bx tvm802c tvm802d tvm802as tvm802b s ql41 qm41 tvm925 tvm926 qm61 qm81 qm10 _pcb track_1920X1280

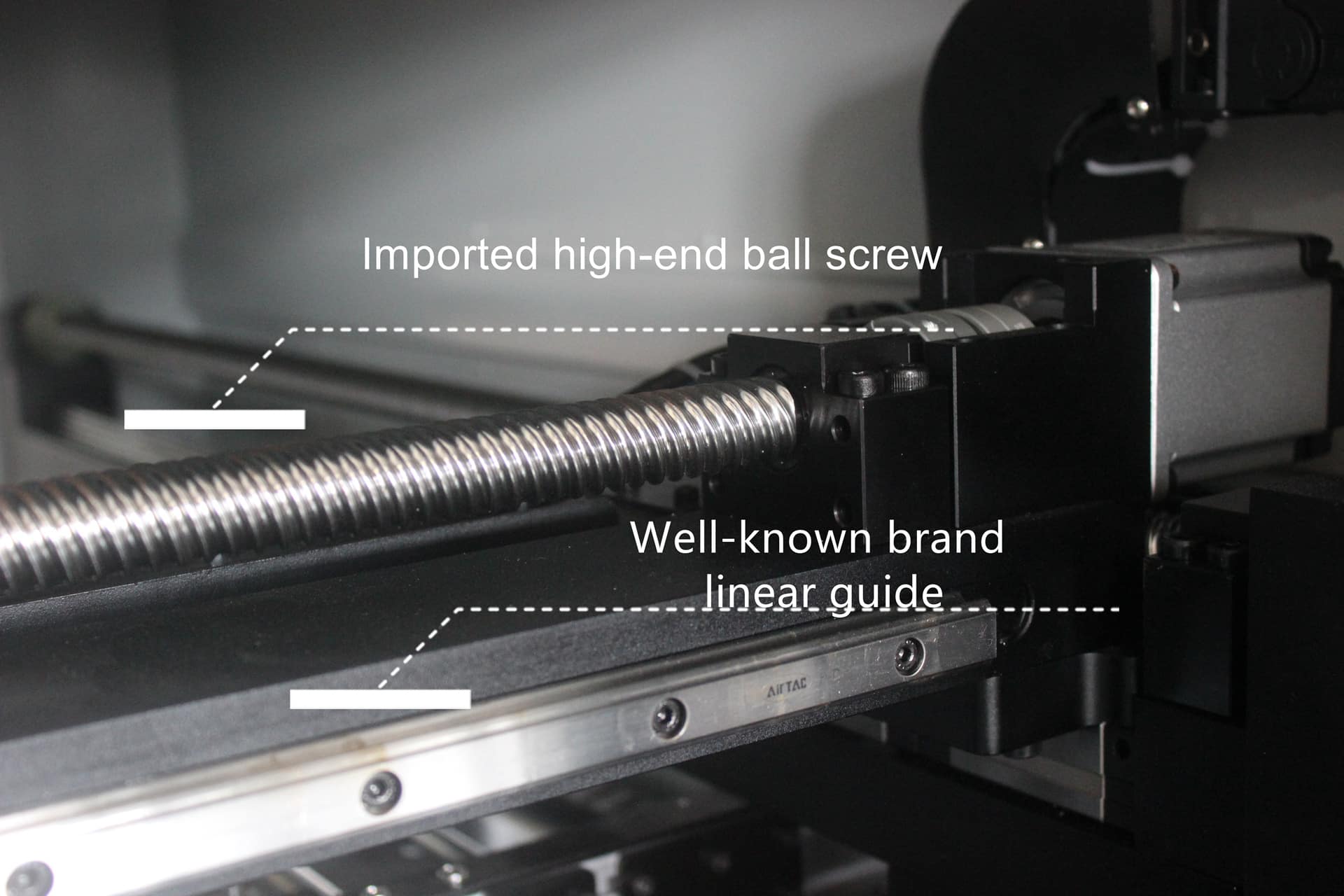

TVM925S TVM926S MOTOR A PNP tvm802a tvm802b tvm802ax tvm802bx tvm802c tvm802d tvm802as tvm802b s ql41 qm41 tvm925 tvm926 qm61 qm81 qm10_ball screw linear guide_1920X1280

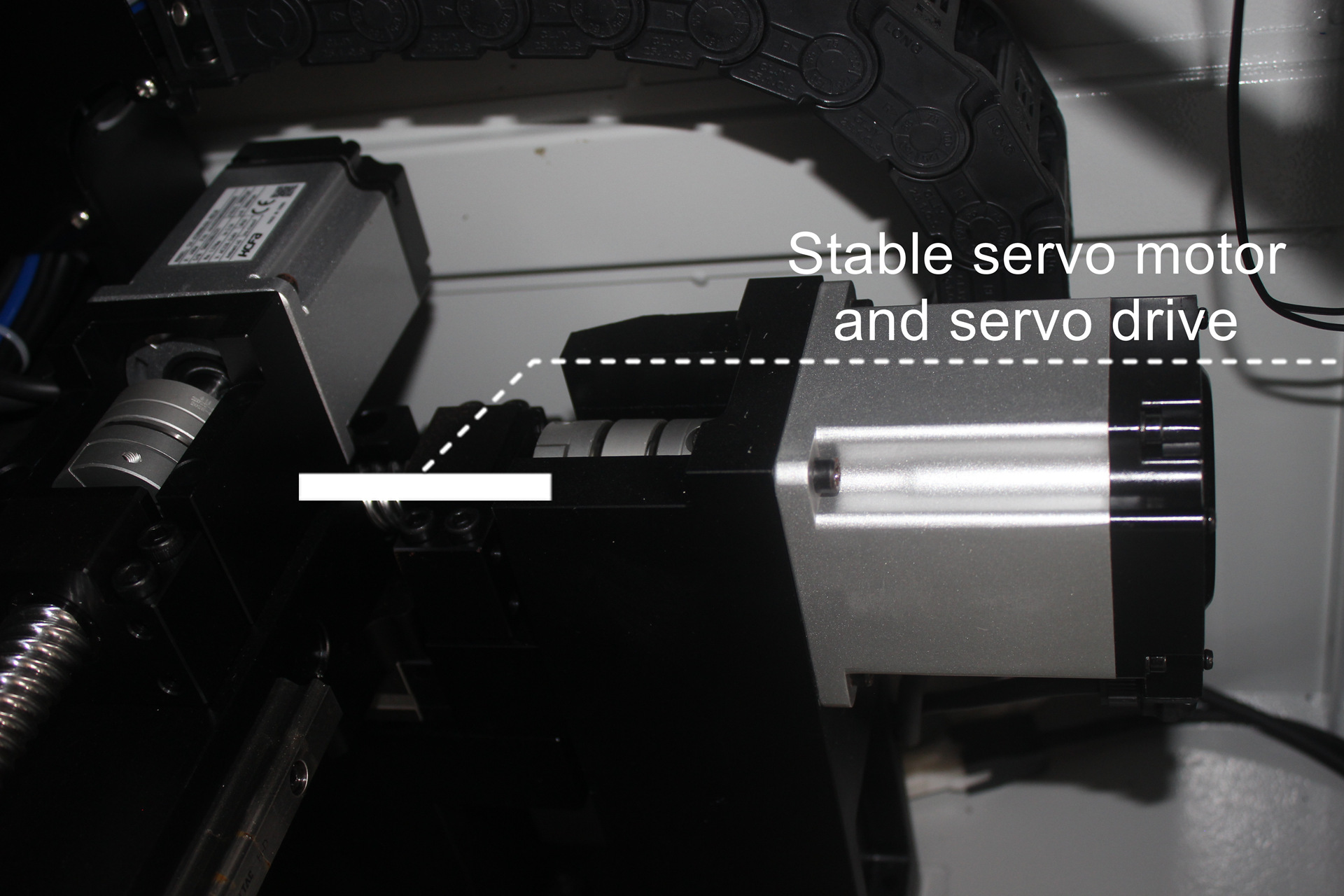

TVM925S TVM926S MOTOR B PNP tvm802a tvm802b tvm802ax tvm802bx tvm802c tvm802d tvm802as tvm802b s ql41 qm41 tvm925 tvm926 qm61 qm81 qm10_A_1920X1280

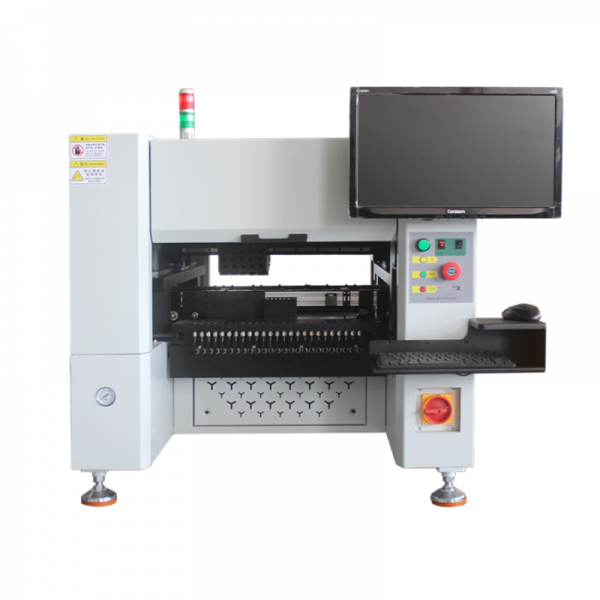

TVM925S (customized model) SMT pick and place machine 4heads 50slots With Rail Benchtop SMT Pick&Place Machine

The TVM925S pick and place machine is designed with 4 heads,50 slots.

Categories: , Tags: , , , , , , , ,

Description

The TVM925S smt pick and place machine is designed with 4 heads,50 slots.

Learning from the TVM925 model smt pick and place machine and combined the technology from QM61 series smt pick and place machine.
It increased the hardware like the flight camera,the servo driver and motor,the TBI screw rod,and the automatic transfer rail .
Upgraded the software functional such as the component library,the visual surveillance,the safety alerts,the fault previously warning .
Can handling special-shaped components, BGA, 0201 inch package.
X Y axis adopts servo motor, speed of up to 9500 components per hour (CPH).

ModelTVM925S
Max applicable PCB50*50mm~350x350mm
XY moving range410*700mm
Z moving range±15mm
Placement head quantity4
Mounting capabilityVision Off: 9500pcs/h
Vision On: 6500pcs/h
Mounting accuracy0.025mm
Applicable components0201,0402,0603,0805,sop8 etc.
Components supplyTape reel. bulk package(IC)tubes
PCB transfer directionLeft→Right
Control Systemservo motor+TBI Screw Rod
Tape width8mm. 12mm. 16mm. 24mm
Feeders loading ability50 slots (YAMAHA Feeder is available)
Machine dimensionL1200xW1440xH920mm
Visual camera1 PCB inspection camera ， 1 Flying camera
Visual camera(down)Automatic identify the mark point
Visual camera(up)Automatic adjust the offset
Vacuum pump qualityExternal air pump
Power supplyAC220V
Average working Power360W
Gross weight271KG
Packing size1.35CBM
