Description
High quality SMT nozzlesfor China smt benchtop pick and place machines
503, 504 n 505 are most popular open pnp nozzle in China.

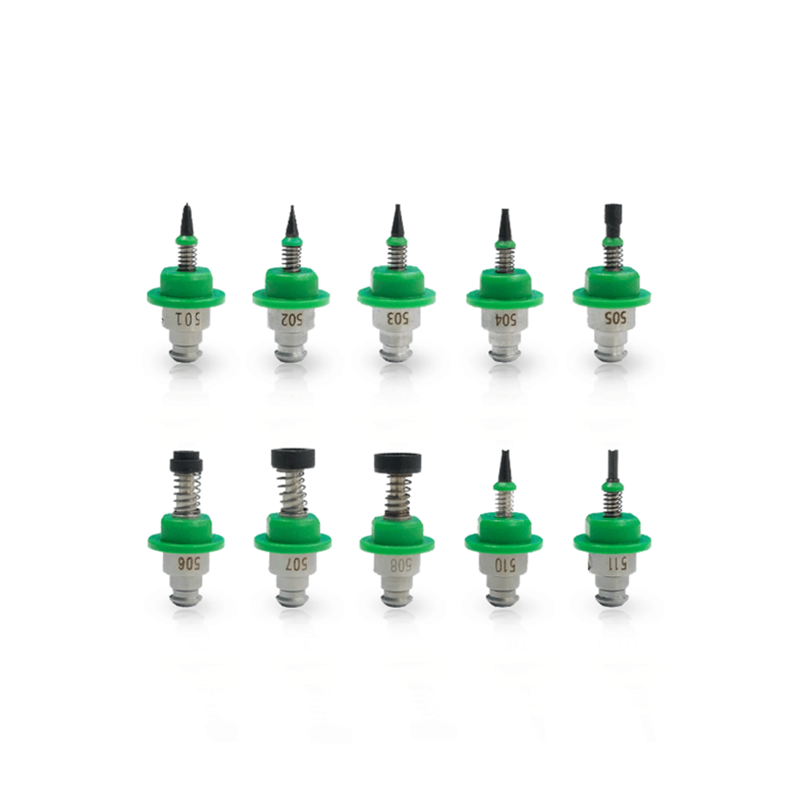

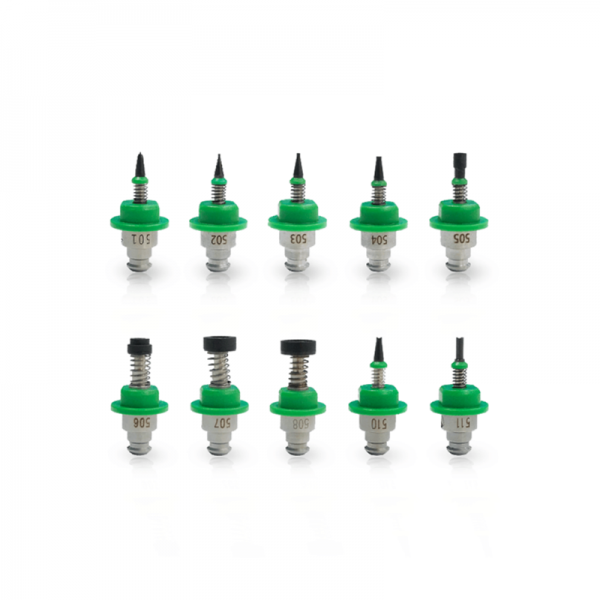

501 Nozzle for 0201
502 Nozzle for 0402
503 Nozzle for 0603,0805
504 Nozzle for 0805,1206,1210,2512
505 Nozzle for 3528,5050,SOP-8,3535 led
506 Nozzle for TQFP,SSOP
New supply 510 for 4148 Diode SMD, 511 for cylindrical resistor SMD

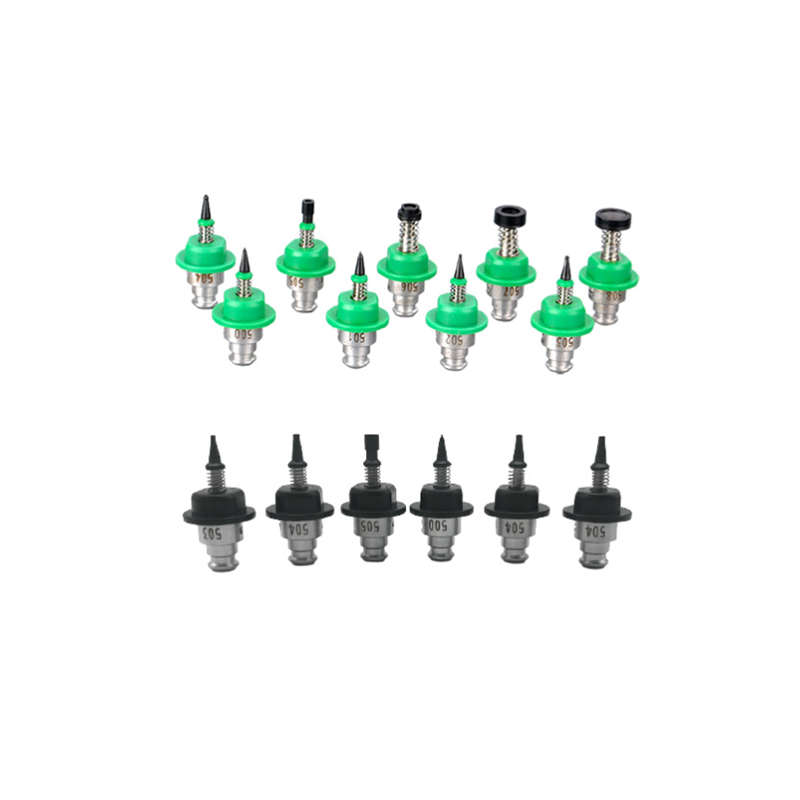

Green or black color
| Nozzle model | OD(mm) | ID(mm) |
| 501 | 0.8*0.4 | φ0.25 |
| 502 | φ0.7 | φ0.4 |
| 503 | φ1.0 | φ0.6 |
| 504 | φ1.6 | φ1.0 |
| 505 | φ3.5 | φ1.8 |
| 506 | φ5.0 | φ3.2 |
| 507 | φ8.5 | φ5.0 |
| 508 | φ9.5 | φ8.0 |
