Description

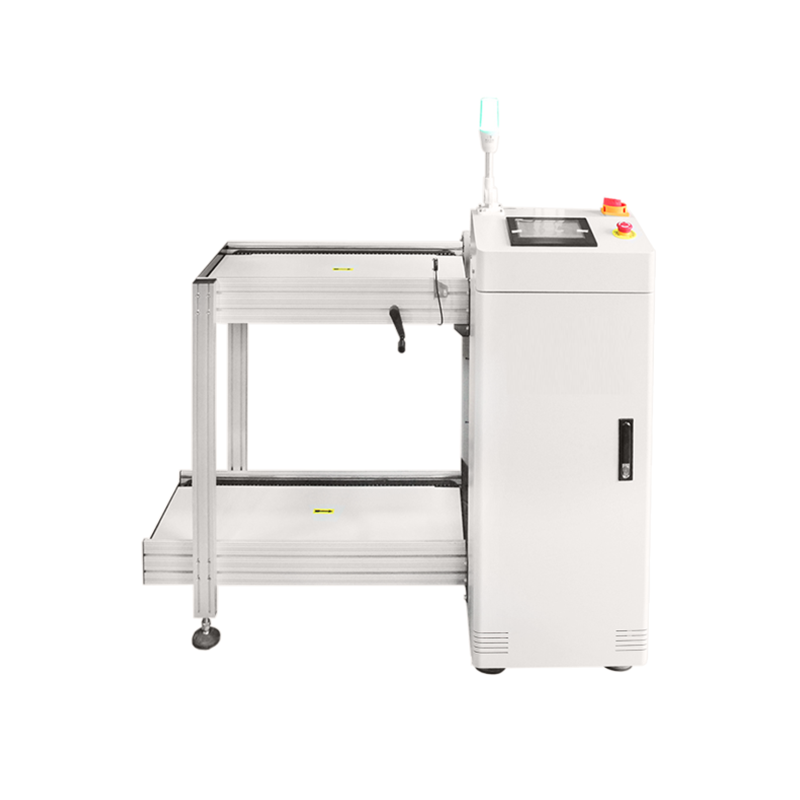

QUL350 pcb up loader smt machine with Microcomputer control, stable and reliable pcb handling machine.

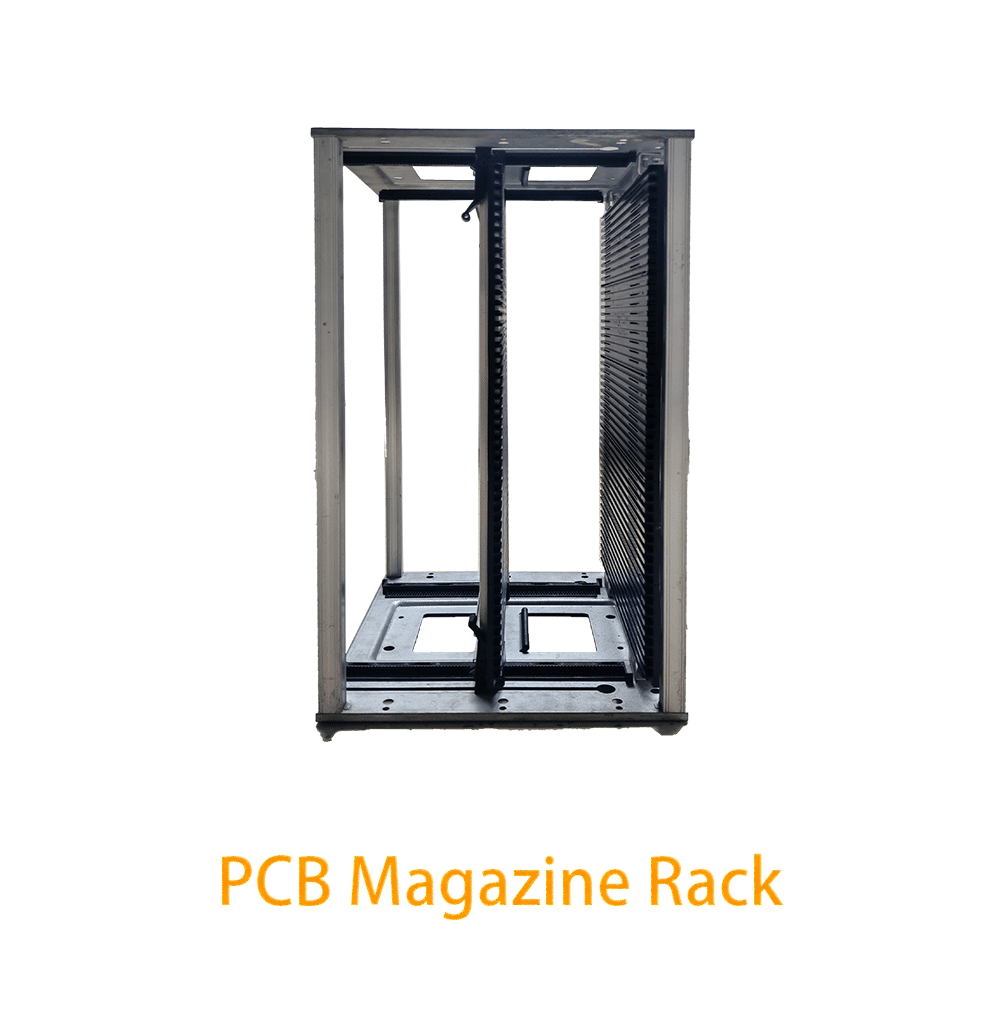

LCD screen display and menu interface to achieve the man-machine dialogue Alarm function.So can use standard magazine, strong commonality. According to the thickness of the PCB so set feeder lifting step distance.
Automatic counting functions.Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm) Loader configured with inner push board component,
save the cost of buying PCB moving machine independently.Optional SMEMA port for communication between machines.
Model | QUL350 |
Max applicable pcb size | 350*250mm |
Support tray quantity | 2 pieces |
Applicable tray size | 350*315*565mm |
Machine size | 1340*790*1200mm |
Air pressure | 0.6Mpa |
Power supply | AC220V |
Power | 200W |
