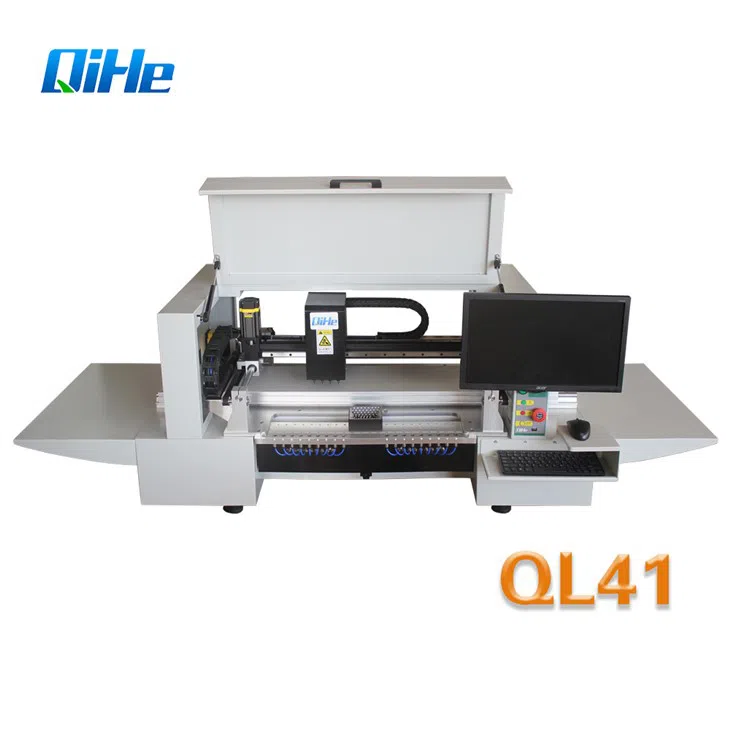

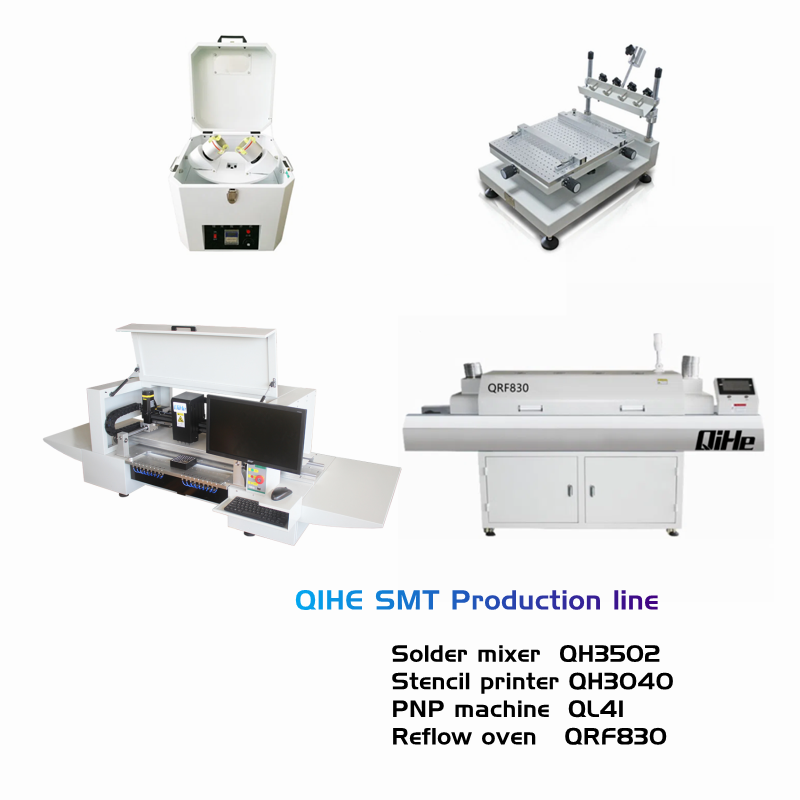

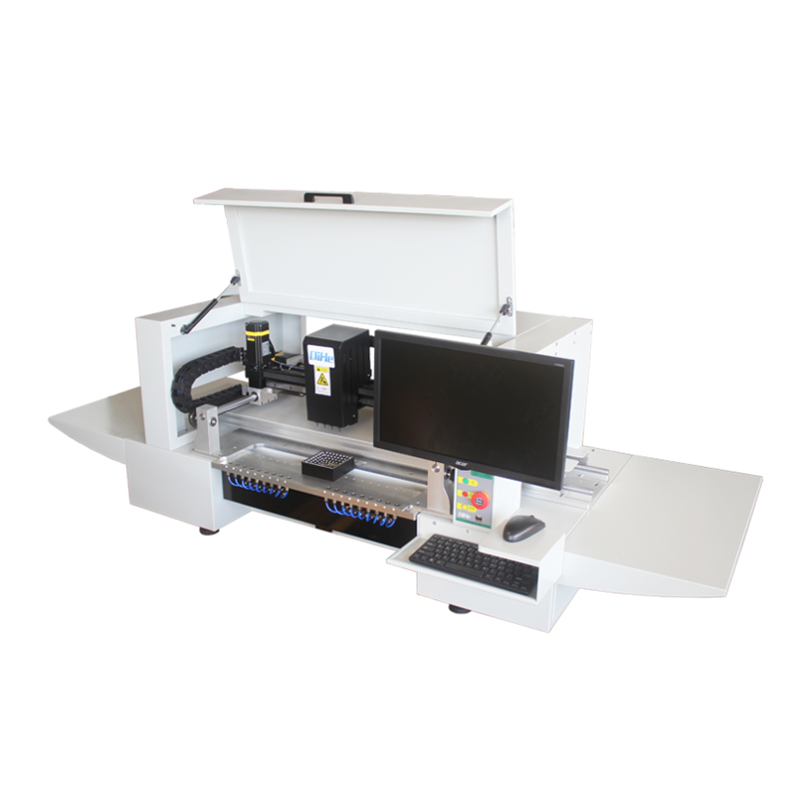

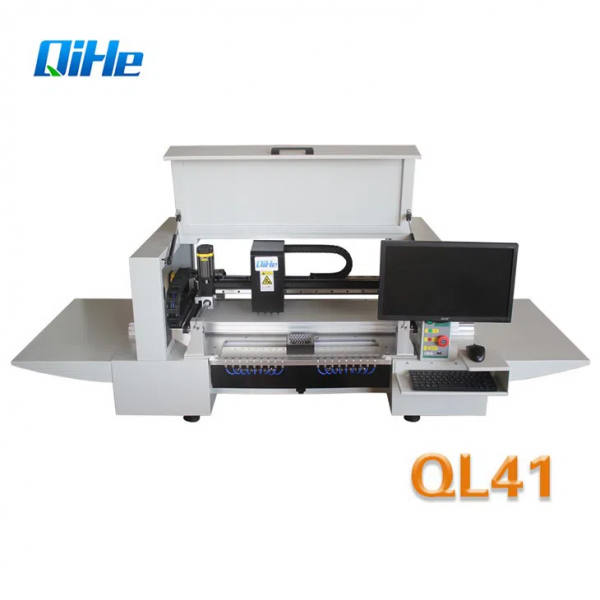

QL41 SMT pick and place machine 4heads 8slots LED for 1.2meters led strip pick&place machine

QL41 led pcb assembly machine SMT pick and place machine(pick&place machine) with four mounting heads can pick 4 materials and through vision at the same time.
Flying vision camera is more stable, making mounting speed fast.

Categories: , Tags: , , , , , , ,

Description

QL41 led pcb assembly machine SMT pick and place machine(pick&place machine) with four mounting heads can pick 4 materials and through vision at the same time.

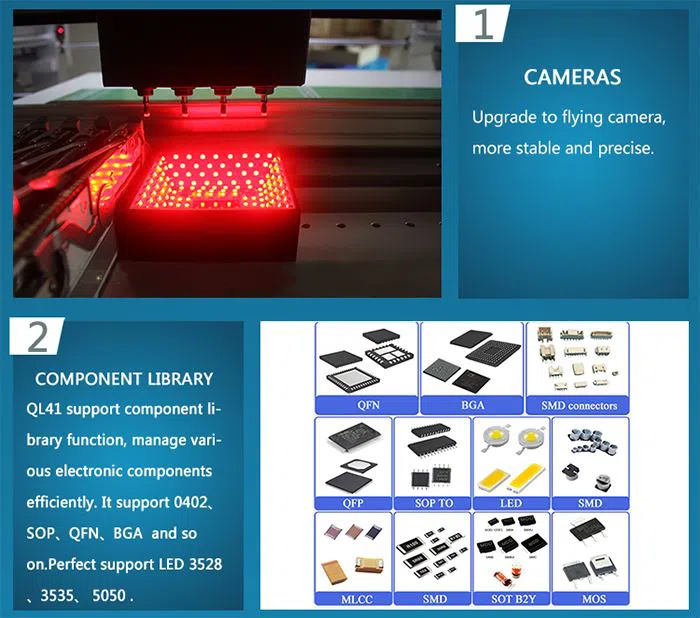

Flying vision components inspection camera is more stable, making mounting speed fast.

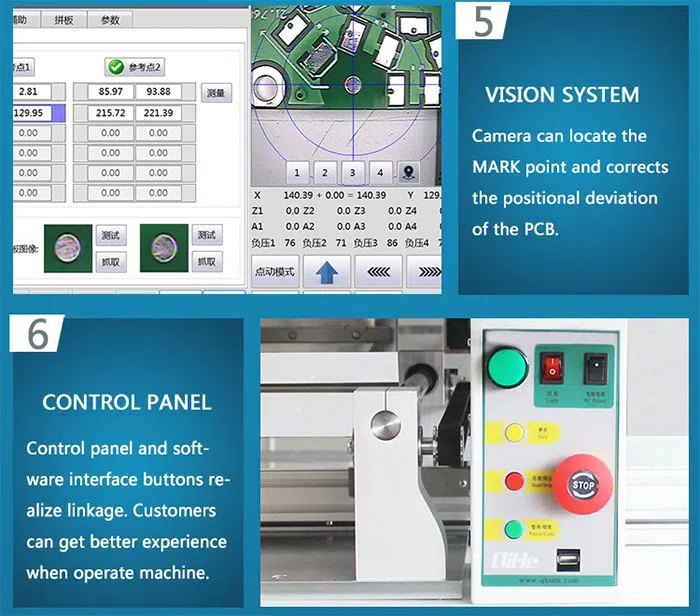

One PCB detection camera used to detect circuit board placement.

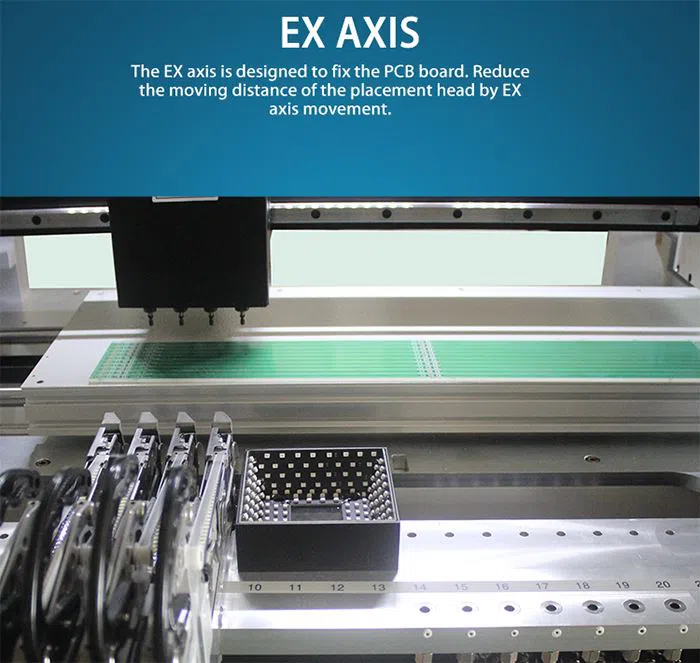

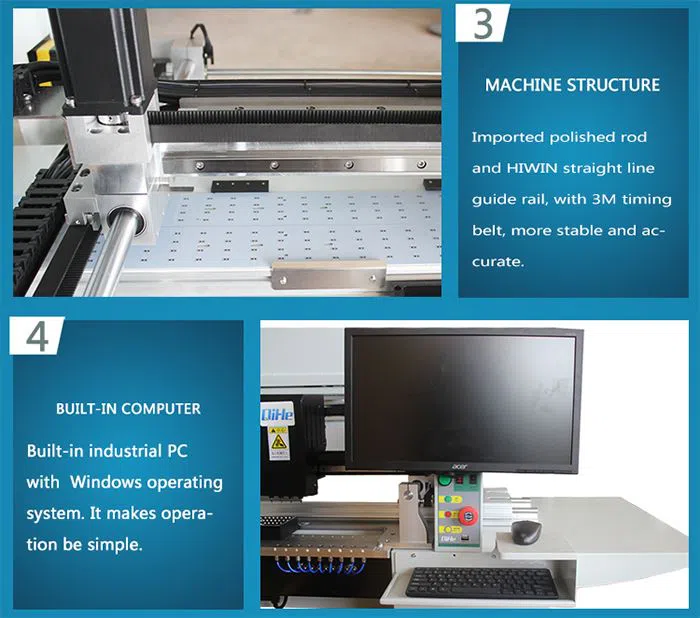

The EX-axis is designed to lay up the circuit board. In the process of mounting,
the ex axis moves, driving the circuit board to move, so that the shortest mount distance.
Mounting length up to 1200mm. Suitable for various types of LED strips and boards.

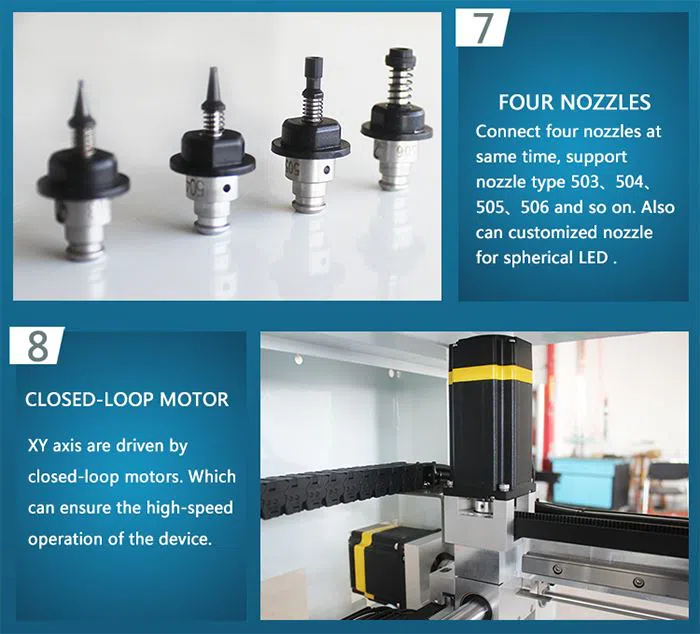

Closed-loop motors design, automatic detection and correction of lost step.

ModelQL41
Max applicable PCB1200*240mm
Max XY Moving rang530*430mm
Max Z Moving range15mm
Placement head quantity4
Mounting speedVision off: 13000CPH
Vision on: 10000CPH
Applicable componentSOP8.LED3535,5050 etc.
Component supplyTape reel, Bulk, Tubular etc.
Vision systemFlight Camera
Control schemeClosed-loop motor
Feeder count & Tape widthstandard 8slots,customized16slots
(8mm,12mm,16mm,24mm)
Power125W(average power)
Power supplyAC220V or AC110V
Machine sizeL2060*W630*H660mm
Packing sizeL1470*W780*H900mm
Volume1.02CBM
Net weight156kg
Gross weight210kgs
Support PCB design softwareProtl99/Altium Designer/Eagle/Pads/Allegre etc.
