Description
Function

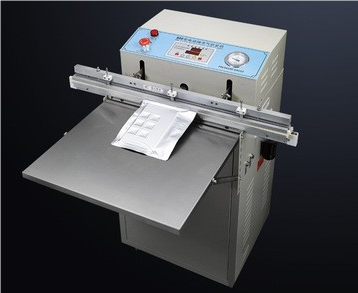

The external pumping type inflatable vacuum packaging machine for PCB is used to pump out the air inside the package and fill it with inert gas such as nitrogen, and then seal the package. Its core role: first, moisture and dust, isolate the external moisture, dust, to avoid affecting the performance of PCB; second, anti-oxidation, inert gas to protect the PCB metal parts, to prevent oxidation damage; third is to protect the transportation and storage, to reduce collision, friction, and other physical damage, to ensure that the PCB in the flow of the process of quality and stability.
| Model | 600/800/1000MM | Supply Voltage | 220V/50Hz(customizable) |
| Sealing length | 600/800/1000MM | Sealing width | 8/10mm(Remarks needed) |
| Pumping speed | 20m³/h (large pump) | Total power | 1200W/1600W/2000W |
| Vacuum time | 0-200’s adjustable | Inflation time | 0-200’s adjustable |
| Tray size | 510X450MM | Operation mode | semi-automatic/fully automatic (choose 1 from 2) |

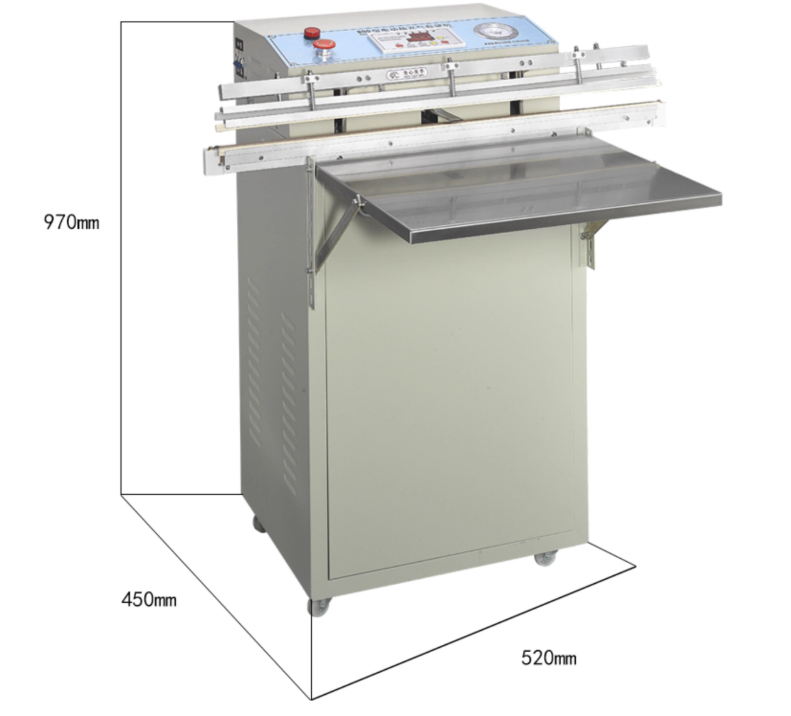

| Overall dimensions: 600 type (650*460*970MM) 800 type (850*460*970MM) 1000 type (1050*460*970MM | |||
| Approximate weight:70KG/75KG/80KG | |||
