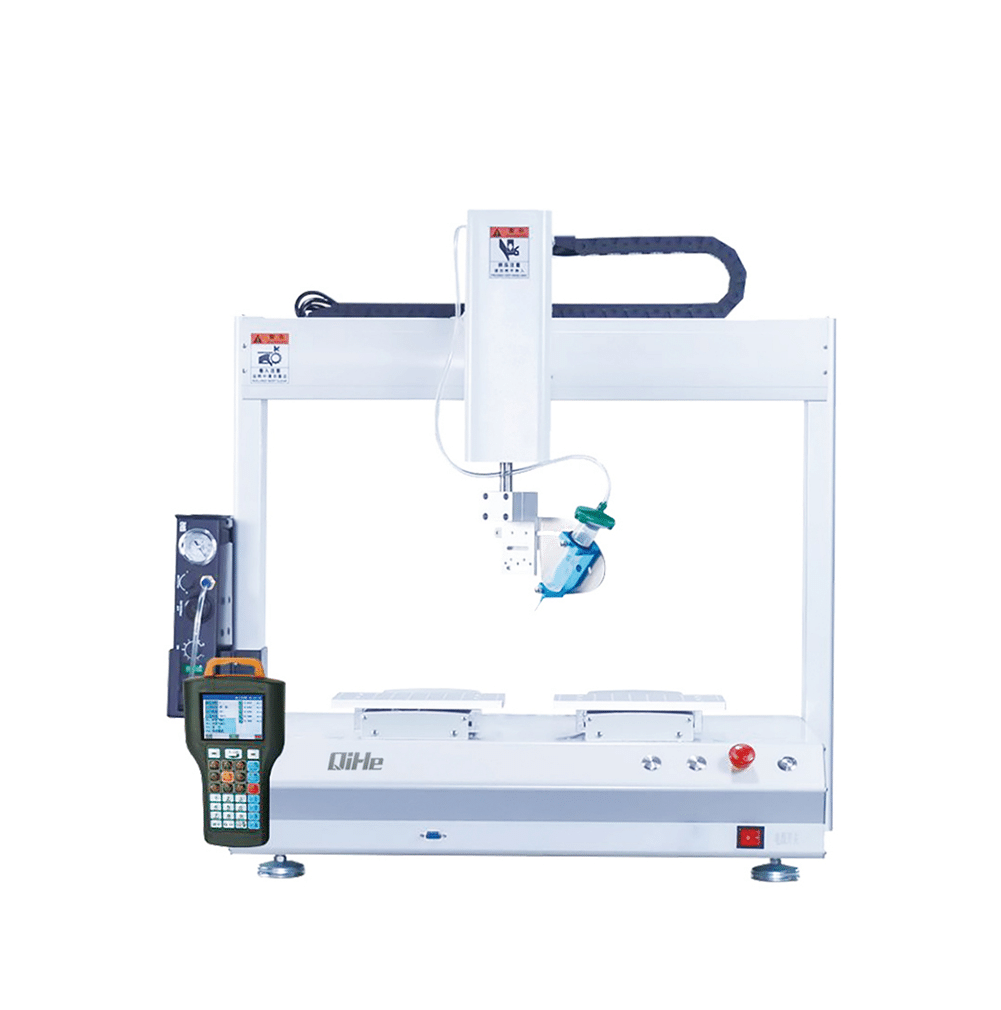

Description
Product features：
It can replace manual work and realise mechanized production; it can be operated by single machine, which is simple, convenient, high-speed and accurate; SD card storage method is convenient for data management and file transfer between machines; it can be equipped with two-component pumping system to form a two-liquid automatic dispensing machine; it can be equipped with dispensing controller and dispensing valve and other accessories to form a floor-mounted dispensing equipment; it can be equipped with a screw locking mechanism and configured as an automatic screw locking machine; it can be upgraded to an in-line robot for various automated assemblies; it can carry loads of space and be used for processing. In-line robot for various automatic assemblies; strong carrying capacity and large processing space.
| Model | QHDJ331R |
| Movement range X/Y/Z/R(mm) | 300/300/100/360° |
| Max dispensing range | 280*280mm |
| Dispensing needle | Plastic needle/ TT needle |
| Moving speed | X/Z(mm/sec): 0-800，Y axis 0-500 |
| Repeat accuracy | ±0.02mm |
| Program recording mode | 100 programs, 1000 dots for each program |
| Machine weight | 60KG |
| Programme mode | Teaching box |
| Control system | Micro-controllers or PLC |
| External control interface | RS232 |
| Input power | AC220V |
| Overall dimension | 660*580*800mm |

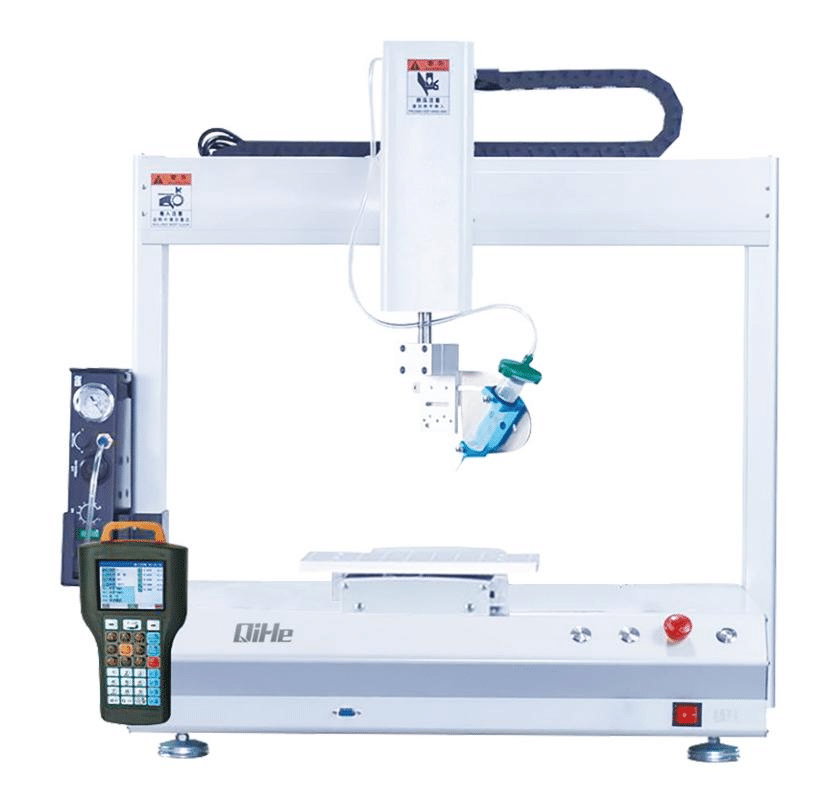

There are also other models available:
| Model | QHDJ5331R | QHDJ6441R |
| Movement range X/Y/Z/R(mm) | 500/300/300/100/360° | 600/400/400/360° |
| Max dispensing range | 280*280mm | 380*380mm |
| Dispensing needle | Plastic needle/ TT needle | Plastic needle/ TT needle |
| Moving speed | X/Z(mm/sec): 0-800，Y axis 0-500 | X/Z(mm/sec): 0-800，Y axis 0-500 |
| Repeat accuracy | ±0.02mm | ±0.02mm |
| Program recording mode | 100 programs, 1000 dots for each program | 100 programs, 1000 dots for each program |
| Programme mode | Teaching box | Teaching box |
| Control system | Micro-controllers or PLC | Micro-controllers or PLC |
| External control interface | RS232 | RS232 |
| Input power | AC220V | AC220V |
| Overall dimension | 660*580*800mm | 800*580*800mm |
| Machine weight | 60KG | 80KG |
