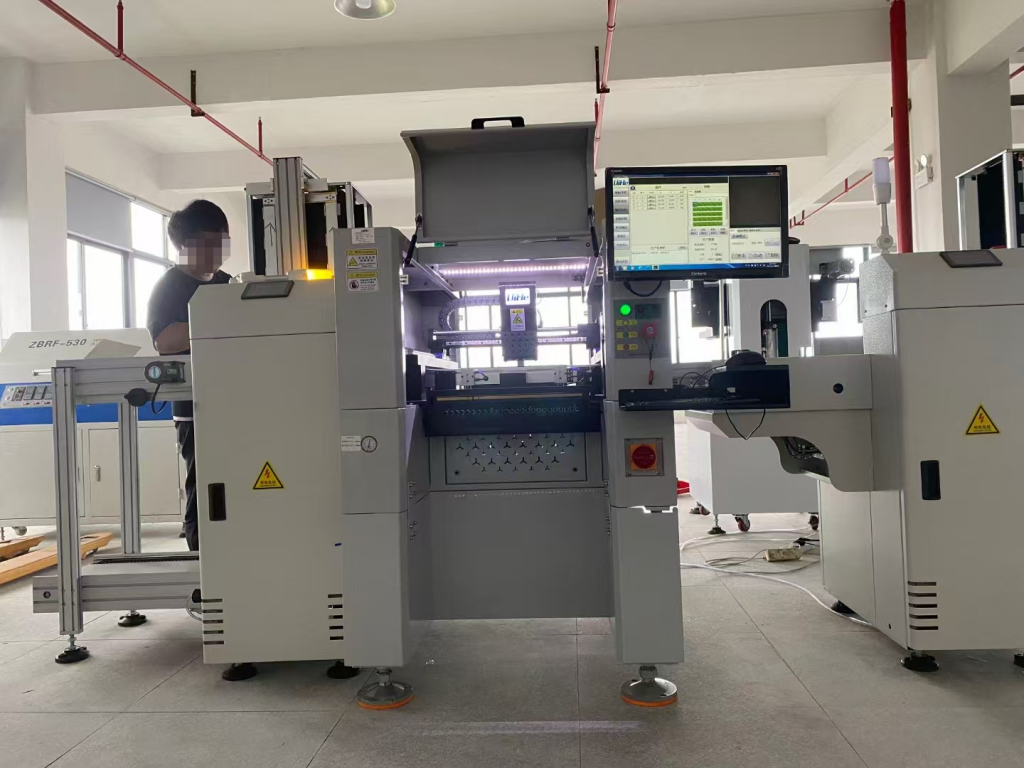

A Ningbo Yuyao customer who makes custom sensors purchased a TVM925S 4-head SMT machine from us.
Machine List:
PCB loader machine : QUL350
Pick and place machine :TVM925S
1m PCB Conveyor*2pcs
PCB unloader machine: QDL350

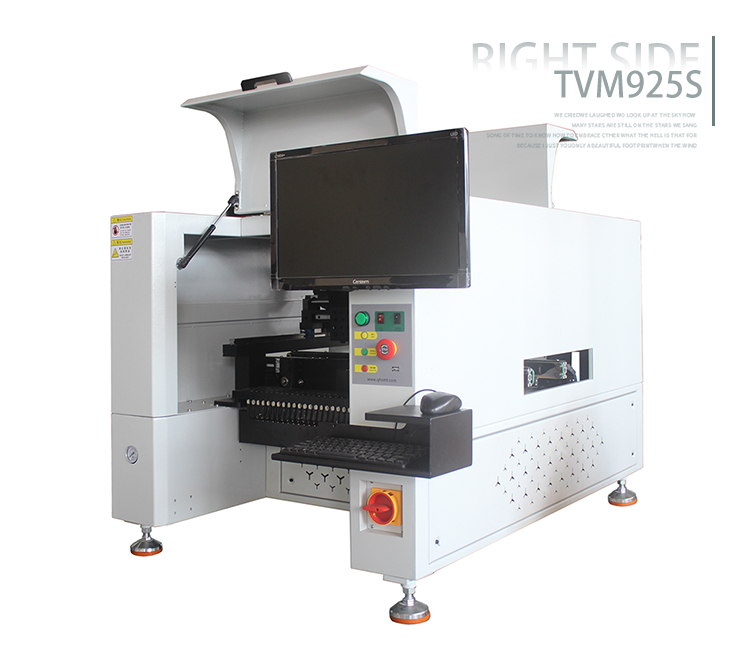

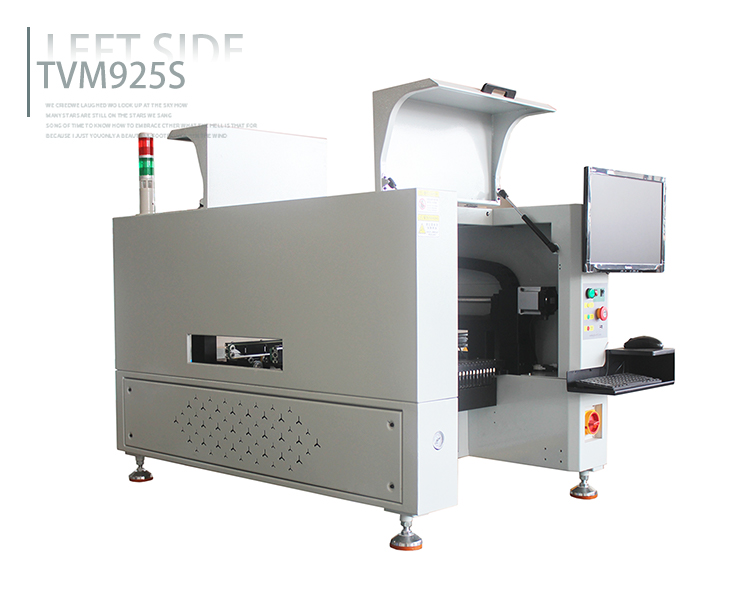

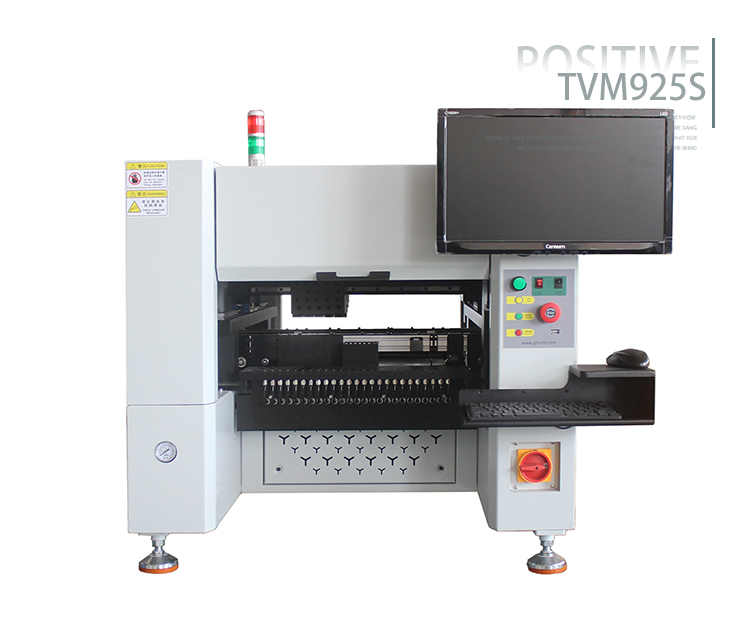

TVM925S :
| Model | TVM925 | |
| Applicable PCB | 20x20mm~310x360mm | |
| XY moving range | 375mmx620mm | |
| Z moving range | 16mm | |
| Placement head quantity | 4 | |
| Mounting capability | 9000pcs/h Without vision | |
| 7000pcs/h With vision | ||
| Mounting accuracy | 0.025mm | |
| Applicable components | 0402.0603.0805.sop8.…QFN | |
| Components supply | Tape reel.bulk package(IC)tubes | |
| Motor control scheme | Closed -loop stepping servo system | |
| Tape width | 8mm.12mm.16mm.24mm | |
| Feeders loading ability | 38(YAMAHA Feeder is available) | |
| Machine dimension | L845xW865xH650mm | |
| Visual camera | 1 PCB inspection camera ,1 Flying camera | |
| Visual camera(down) | Automatic identify the mark point | |
| Visual camera(up) | Automatic adjust the offset | |
| Vacuum pump quality | External air pump | |
| Power supply | AC220V/AC110V | |
| Average working Power | 350W | |
| Net weight | 130KG | |
| Packing size | 0.82CBM | |

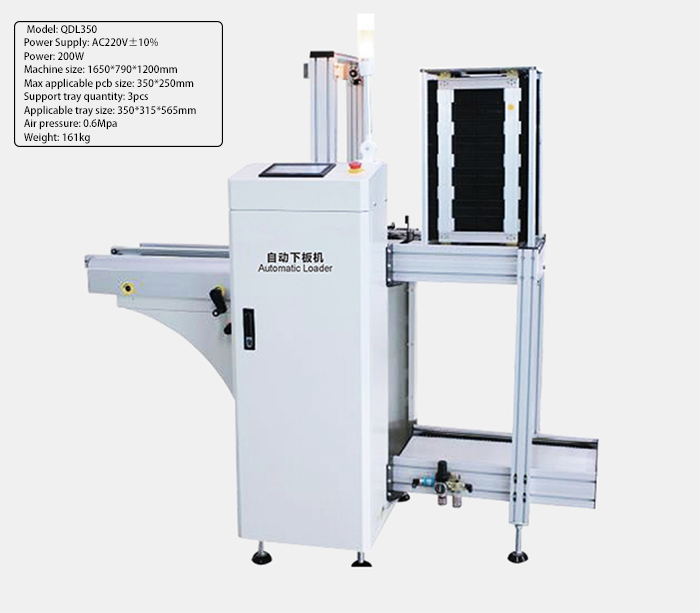

PCB loader/unloader machine :
Surface mount technology is a part of the electronic assembly that deals with the mounting of electronic components to the surface of a PCB. Electronic components mounted this way are called surface-mounted devices (SMD). SMT was developed to minimize manufacturing costs while making efficient use of board space.Qihe SMT company develops and produces all kinds of SMT equipment suitable for world wide market, including pnp machine,reflow oven,stencil printer,pcb handling machines,and other products.
Small desktop pick and place machine TVM802A,TVM802B,TVM802AX,TVM802BX series suitable for beginners, for hobbiest or small number of users.
Advanced level 4-head LED strip placement QL41 led machines and with rail universal series TVM925S,TVM926S,
Fully automatic 6-10-head placement Q6，Q8,Q10,machines, which are suitable for high volume mass production in factories.
QH902N,SMD component counting machine . Which also called Reel Counter,SMD Counting Machine. Automatic smd electronic components chip counting machine,Leak Detection Intelligent Electronic Component Reel Counter.
