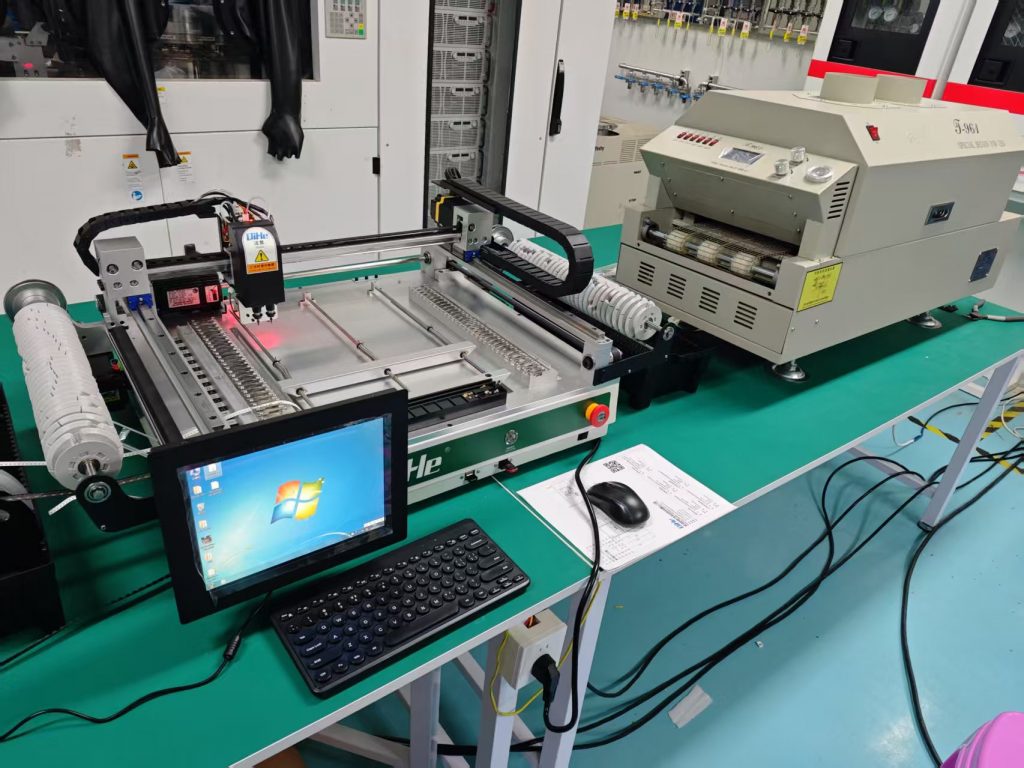

The small chip placement machine produced by Qihe Electronic Technology Co., Ltd. has been applied to lighting in a small household appliance company in Cixi, Ningbo.
Machine List：

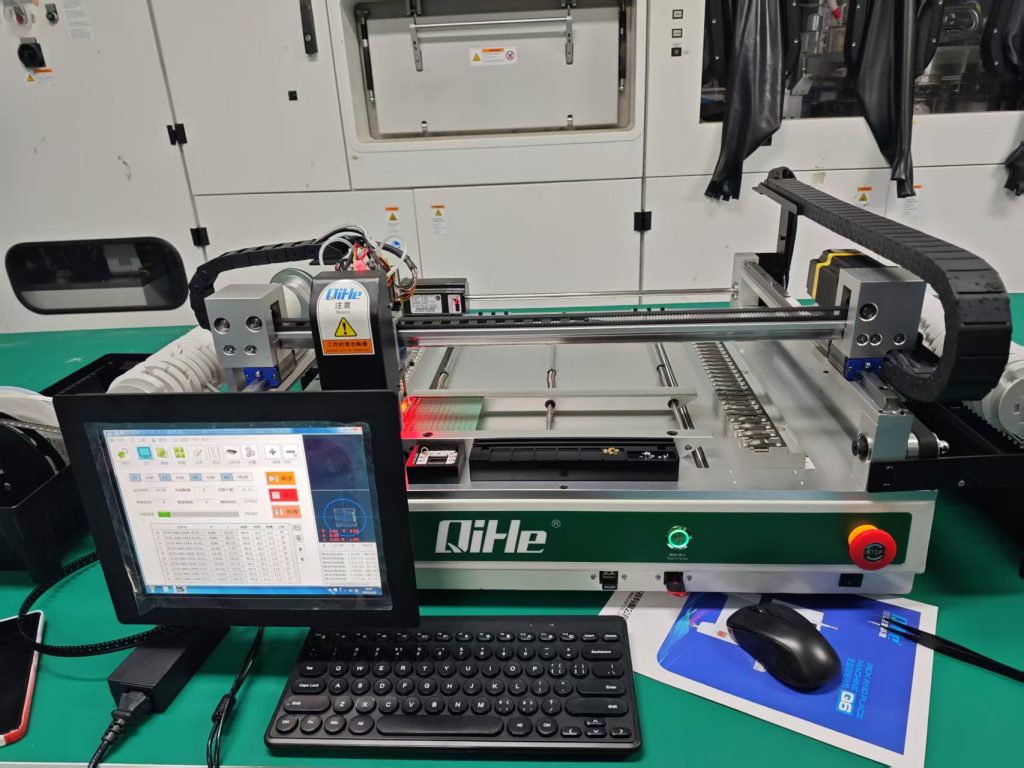

Small desktop chip placement machine: TVM802Bplus ：
● 2 pick-and-place heads
● Specifications of front and rear feeders: max 58 varieties
● Fastest placement speed: 5500CPH
● Stepper motor

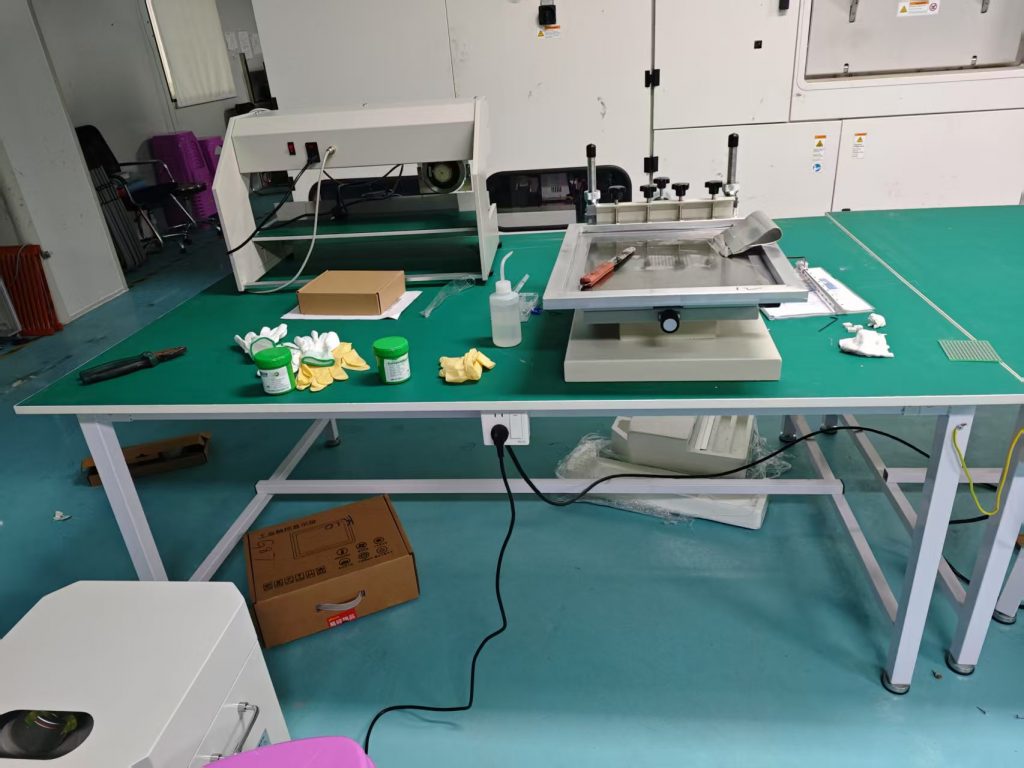

Manual solder paste screen printer: QH3040
● Used for ingle or double-sided circuit board solder paste or red glue printing.
● Max printing size：250*400mm
● ±0.01mm repeat ability precision

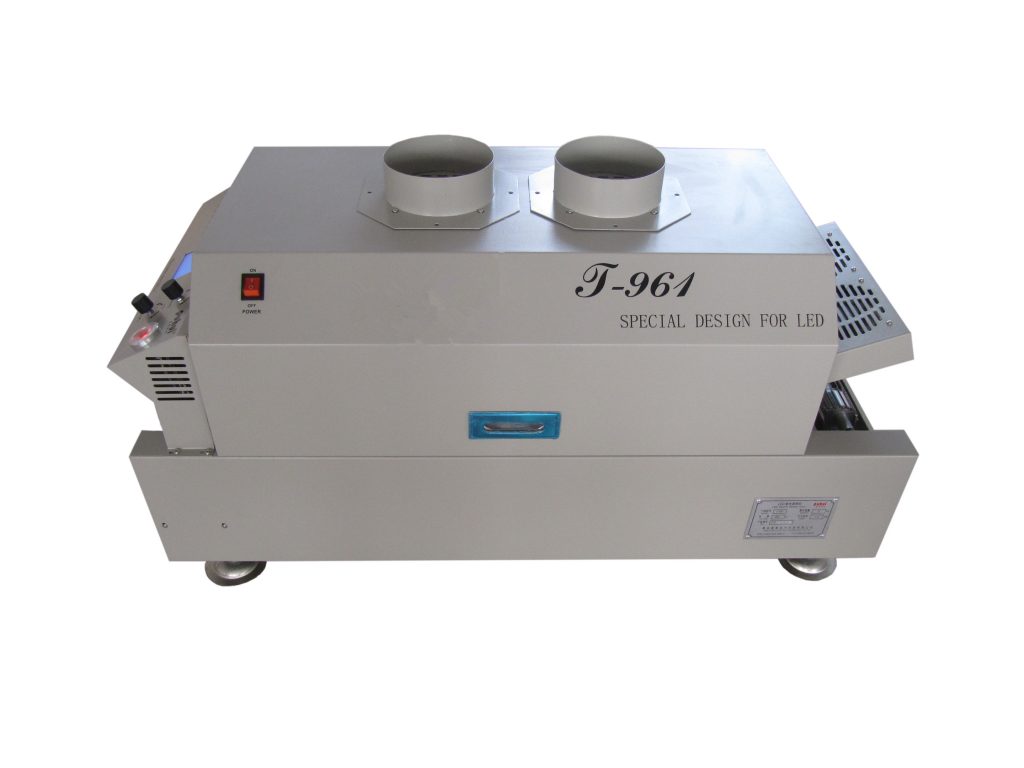

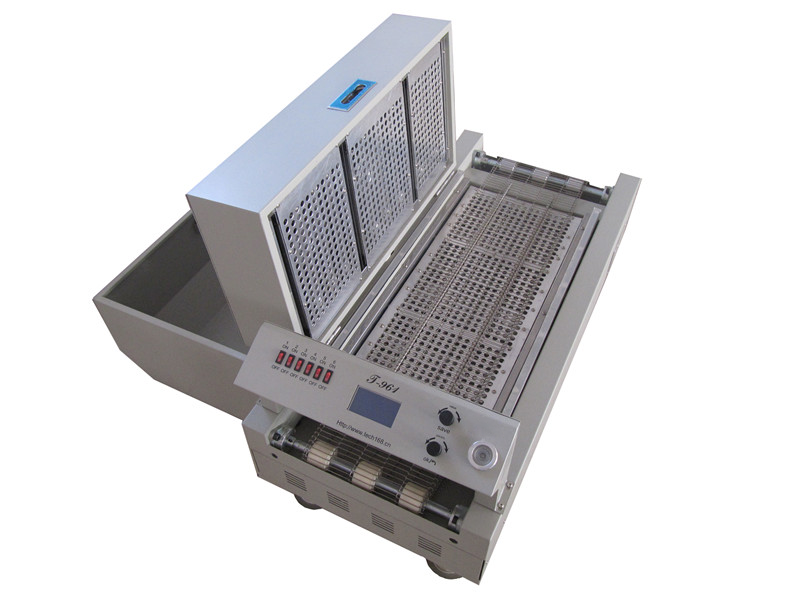

Orbital reflow: T961
● The heating zone quantity:upper3/down3
● The length of the heating zone:730mm
● The heating type: Intelligent curve heating and infrared enhanced hot air production
● The cooling zone quantity：1
● Maximum width of PCB board：230mm
Solder paste mixer: QH3502
● Mix the alloy powder, flux and other components of the solder paste by stirring to restore the viscosity and fluidity of the paste, to ensure that the printing, dispensing and other aspects of the paste can be evenly coated on the PCB (printed circuit board).
About QIHE SMT pick and place machine
QHSMT is an enterprise specializing in the production of SMT equipment, like pick and place machine ，reflow oven，stencil printer ，smt pick and place machine,pnp,pick&place,pcb assembly,smd chip shooter,pnp machine,chip mounter,smt line,welcome to send inquiry
you can choose a reflow oven to meets your need like QRF630,QRF835,QRF1235
stencil printer model QH3040,QP3250,R5,RSE
Also we have different kinds of smt pick and place machine like TVM802a,TVM802b,TVM802ax,TVM802bx,TVM802b plus,TVM925s,TVM926s,QL41,Q4,Q6,Q8,Q10
Know more about us https://www.qhsmt.com/about-qihe-smt-equipment/
Follow us on social media https://www.facebook.com/Qihesmt/
WHAT IS SMT pick and place machine？
SMT (Surface Mounted Technology) is a comprehensive system engineering technology, which covers substrates, design, equipment, components, assembly processes, production accessories and management. When it comes to SMT pick and place machines, the automatic SMT production line requires automatic loading and unloading machine, automatic solder paste printing machine, placement machine, reflow soldering machine, AOI inspection equipment, conveyor,connecting table, etc. For these SMT assembly line equipment, Qihe SMT can offer you machines in prototype SMT line, small SMT production line, mass production SMT line at low SMT line cost. Contact us now if you are interested.
