Small automatic placement machine is used to achieve high-speed, high precision fully automatic placement of components, is the most critical and complex equipment in the entire SMT production.

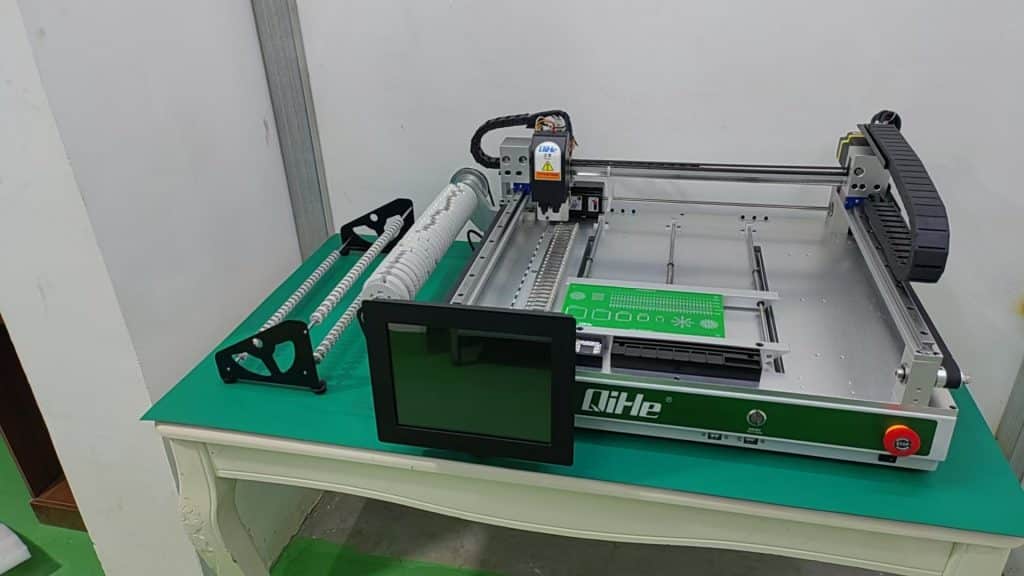

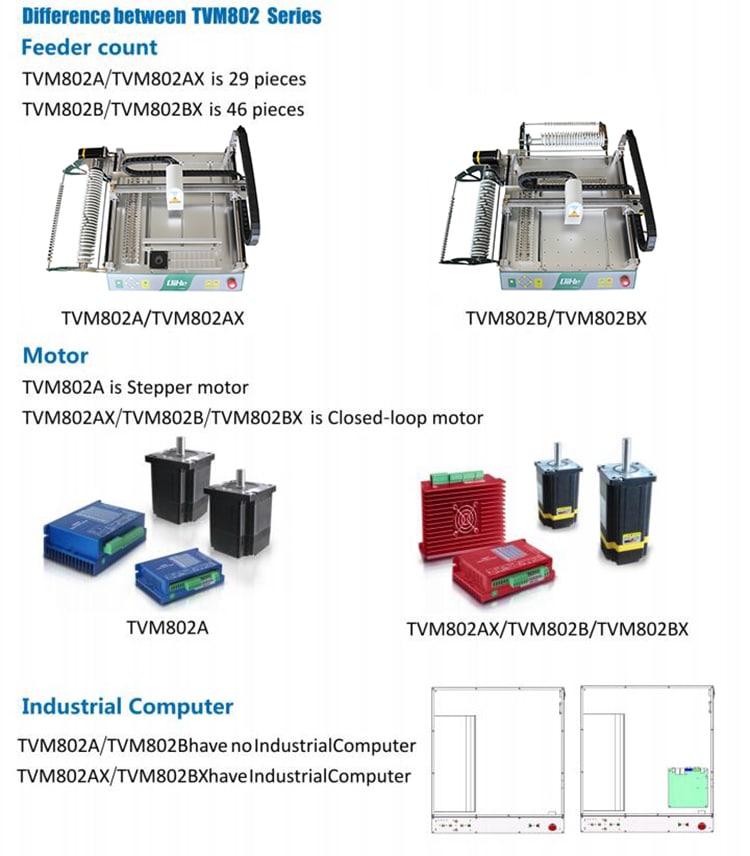

Small Desktop Mounter TVM802APLUS
● Fastest placement speed is 6000cph.
● Components can be placed 0402-5050, SOP, TQFP, QFN, etc.
● High-definition computer vision camera for component identification
● Maximum 29 (8mm=25, 12mm=3, 16mm=1 feeders) feeders can be installed.
● Automatic visual recognition of MARK points
● Component recognition using automatic visual recognition (recognition of resistors, diodes, SOPs, etc.)
● CAD files can be loaded directly or programmed visually.
● Optional automatic board in/out rail system.
● Optional automatic nozzle change system
| Name | TVM802A PLUS |
| Max applicable PCB | 20*20mm—300*320mm |
| Max XY Moving area | 490*440mm |
| Placement head quantity | 2 |
| Max mounting capability | 6000 PCS/H |
| Motor control scheme | Closed-loop stepper motor |
| Applicable Components | 0402–5050、SOP、TQFP、QFN etc. |
| Components supply | Tape reel、bulk、Tray |
| Tape width & Feeders number | Total=29, 8mm=25, 12mm=3, 16mm=1 |
| Visual systems | 2 HD CCD Cameras |
| Pump | 1 vacuum pump(-92KP), 1 blow pump |
| Leakage material detection | Vacuum |
| Power | 280W |
| Power Supply | AC220V or AC110V |
| Machine weight | 55kg |
| Gross weight | 83kg |
| Packing size | 99*71*50cm |
| Volume | 0.36CBM |
| Support software | Protl99/Altium Designer/Eagle/Pads/ Allegro |
About QIHE SMT pick and place machine
QHSMT is an enterprise specializing in the production of SMT equipment, like pick and place machine ，reflow oven，stencil printer ，smt pick and place machine,pnp,pick&place,pcb assembly,smd chip shooter,pnp machine,chip mounter,smt line,welcome to send inquiry
you can choose a reflow oven to meets your need like qfr630,qrf835,qrf1235
stencil printer model qh3040,qp3250,qfa5060
Also we have different kinds of smt pick and place machine like tvm802a,tvm802b,tvm802ax,tvm802bx,tvm802b plus,tvm925s,tvm926s,ql41,qm61,qm62,qm81,qm10
Know more about us https://www.qhsmt.com/about-qihe-smt-equipment/
Follow us on social media https://www.facebook.com/Qihesmt/
WHAT IS SMT pick and place machine？
SMT (Surface Mounted Technology) is a comprehensive system engineering technology, which covers substrates, design, equipment, components, assembly processes, production accessories and management. When it comes to SMT pick and place machines, the automatic SMT production line requires automatic loading and unloading machine, automatic solder paste printing machine, placement machine, reflow soldering machine, AOI inspection equipment, conveyor,connecting table, etc. For these SMT assembly line equipment, Qihe SMT can offer you machines in prototype SMT line, small SMT production line, mass production SMT line at low SMT line cost. Contact us now if you are interested.
