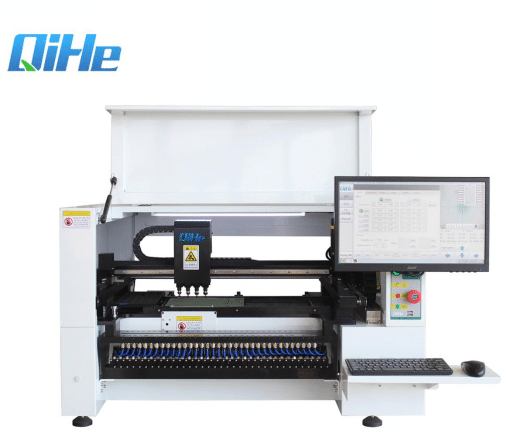

TVM926 is a high speed pick and place machine for medium production line. Up to 63 feeder slots, it can mount many kinds of component. Multi-Vision System: Total six cameras make placement more accurate. Time saving by the four nozzles are examined over the four cameras at the same time. It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and speed to meet the demands of an ever-changing market.
Main Feature:
- Vision system: one down-looking camera. Four CCD cameras and one HD camera.
- Four placement heads can pick up and calibrate components at one time.
- Up to 63 feeder slots, Yamaha standard feeder is available.
- Built-in computer main board. Monitor, key board and mouse will ship with machine.
- Video tutorials make you operate machine easily
- Free to upgrade software and provide technology support for life.
Parameters
| Name | TVM926 |
| Max applicable PCB | 20*20mm~330*580mm |
| Max XY Moving range | 585*620mm |
| Max Z Moving range | 16mm |
| Placement head quantity | 4 |
| Max mounting capability | Vision Off: 9000 CPH |
| Vision On: 7000CPH | |
| Applicable Components | 0402,0603,0805,SOP8,SOP16 etc. |
| Motor control scheme | Closed-loop Control System |
| Feeders | 63 (YMAHA Feeder is available) |
| Machine dimension | L1060*W865*H650mm |
| Visual camera | 5 CCD Cameras & 1 HD CCD Camera |
| Vacuum pump quality | External air pump |
| Power Supply | AC220V/AC110V |
| Average working Power | 350W |
| Net weight | 176kg |
| Gross weight | 205kg |
| Packing size | 0.98CBM |
