- Productoverview

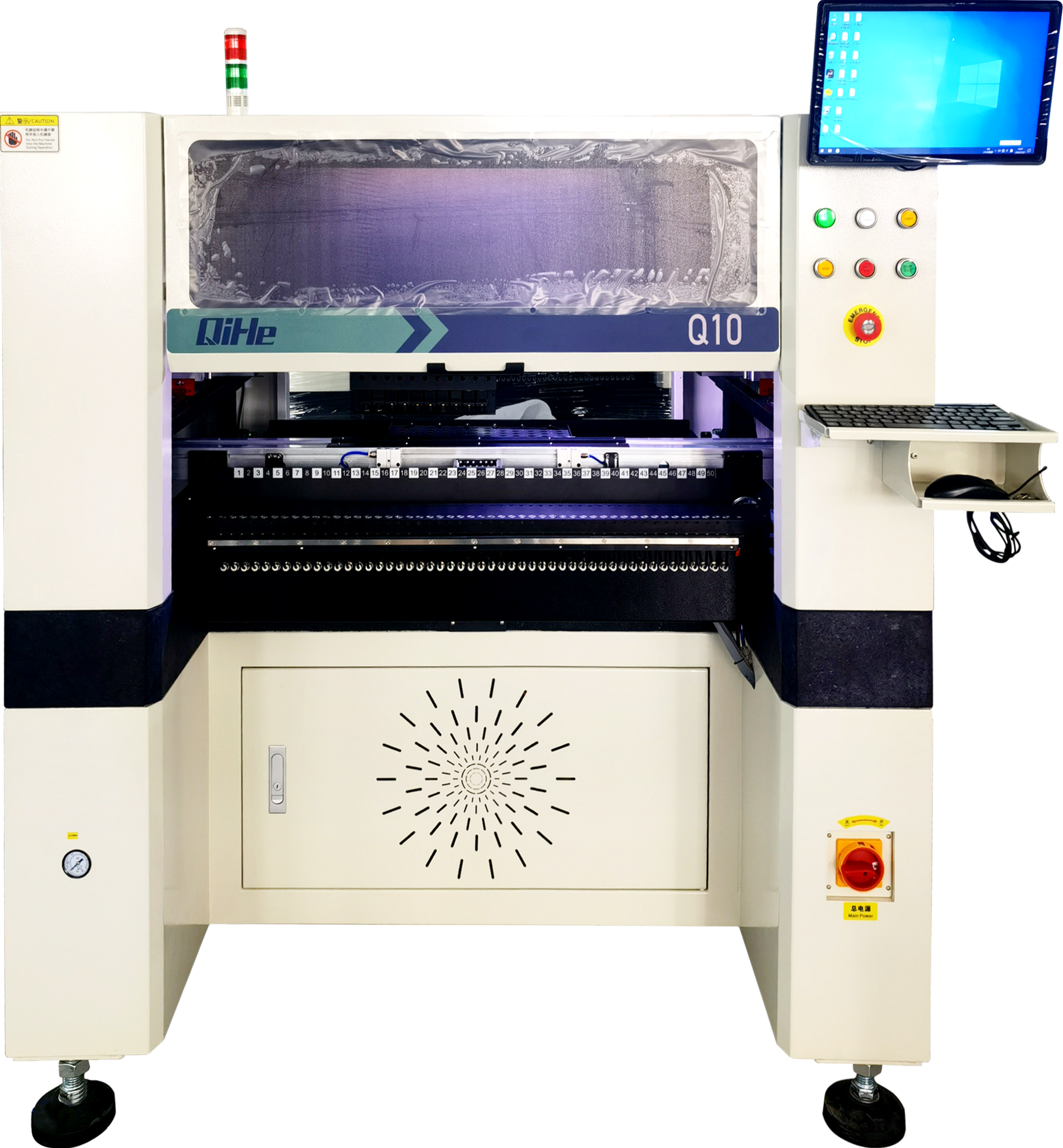

The Q10+SMT machine differs from traditional aluminum panels by using a granite marble base. The marble weighing 550kG machine increases weight, and during movement, the equipment will not shift position due to its light weight, resulting in higher accuracy. At the same time, it also enhances the service life of the screw.
- Functional Features
1. Fully automated online design reduces the cost of manual loading and unloading.
2. Ten Z-axis cameras fly simultaneously to further optimize the device’s mounting mode and response speed.
3.Circuit control system, fully integrated mode, with clear indication of electrical control performance.
4.The small spacing mode of the head module further improves the efficiency of surface mounting.
5.Close range waiting mode allows PCB boards to reach the mounting position more efficiently.
- Application scope
All products within 400*380mm, including bulb lights, tube lights, spotlights, ceiling
lights, guardrail tubes, LED driver power supplies, linear lights, soft light strips, control
boards, and car lights,etc.
