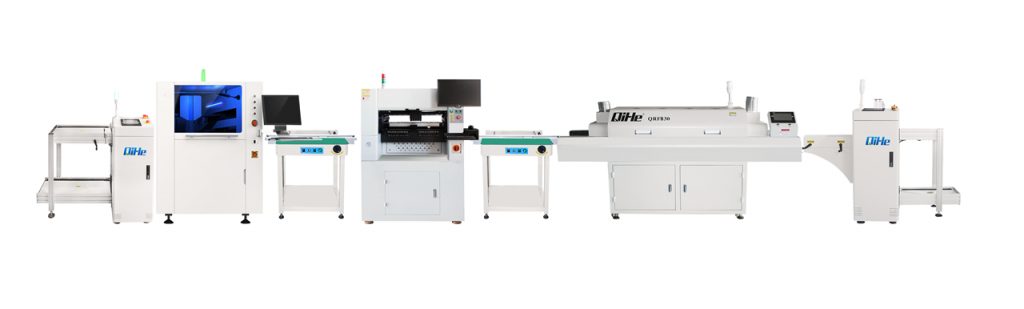

Hello everyone, today we will learn about a customer case of operating lithium battery protection board on the customized modules completed by small automatic smt machine line ,TVM925s pick and place machine ,stencil printer QP3250,T960 reflow oven and pcb conveyor .

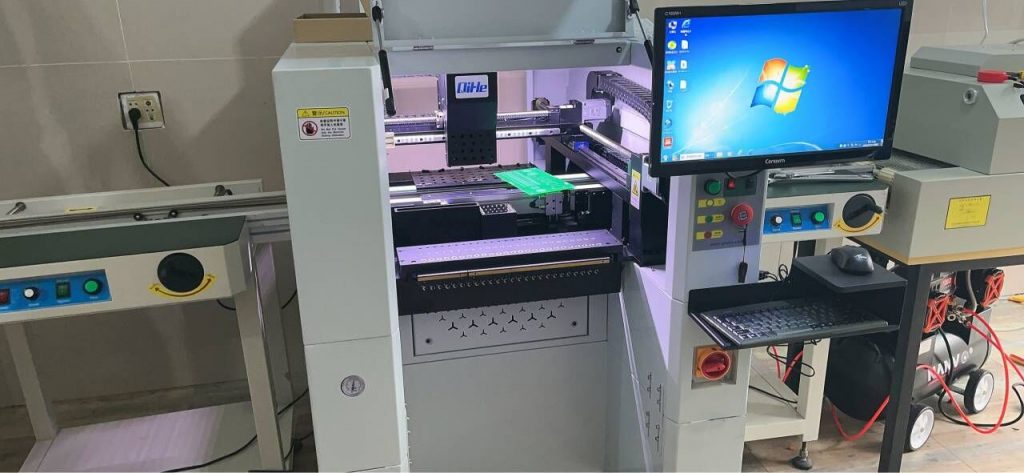

The customer said that small machines like the TVM925s smt placer is easy to install, and they don’t require a relatively demanding site like the japanese brand large-scale placement machines. The small machines can be used directly on the passageway on the first floor, which is very suitable for him.The TVM925s software operating system is also very friendly, and you can start debugging by yourself after a little research.
The placement accuracy is also enough to match the board he developed. What he showed in the video the smallest component he uses is the 0402 package .
what is battery protection board ？
Battery protection board, as the name suggests, is mainly an integrated circuit board that provides protection for rechargeable (usually referred to as lithium batteries). The reason why lithium batteries (rechargeable) need protection is determined by their own characteristics. Due to the material of the lithium battery itself, it cannot be overcharged, discharged, overcurrent, short circuited, or charged or discharged at ultra-high temperatures. Therefore, the lithium battery components always appear with a protective plate with a sampling resistor and a current protector.
What is the function of lithium battery protection board ？
The protection function of lithium batteries is usually completed by the cooperation of the protection circuit board and current devices such as PTC or TCO. The protection board is composed of electronic circuits, which accurately monitor the voltage of the battery cell and the current of the charging and discharging circuit at all times in an environment of -40 ℃ to+85 ℃, and control the on-off of the current circuit in real-time; PTC or TCO prevents severe battery damage in high-temperature environments.
