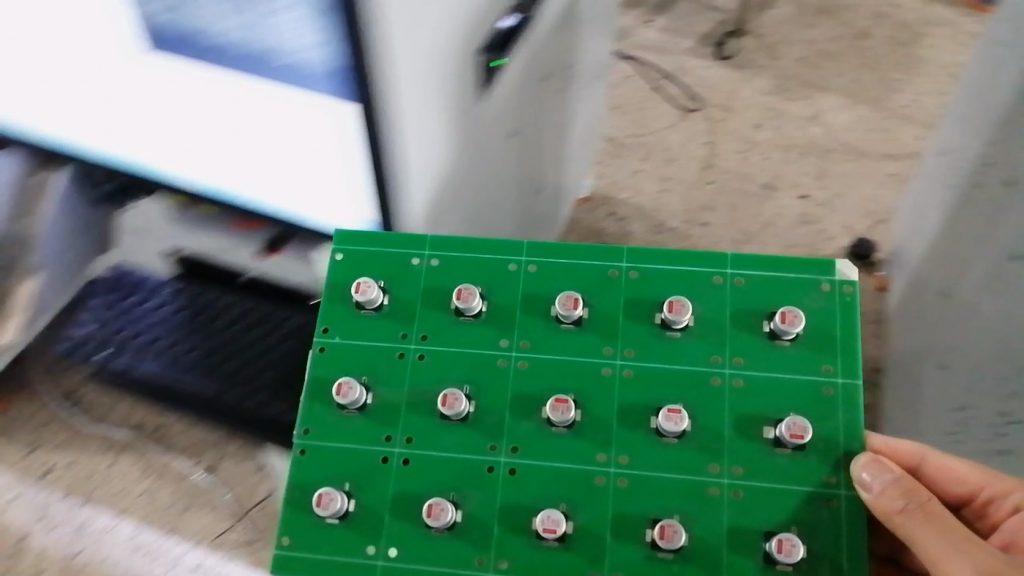

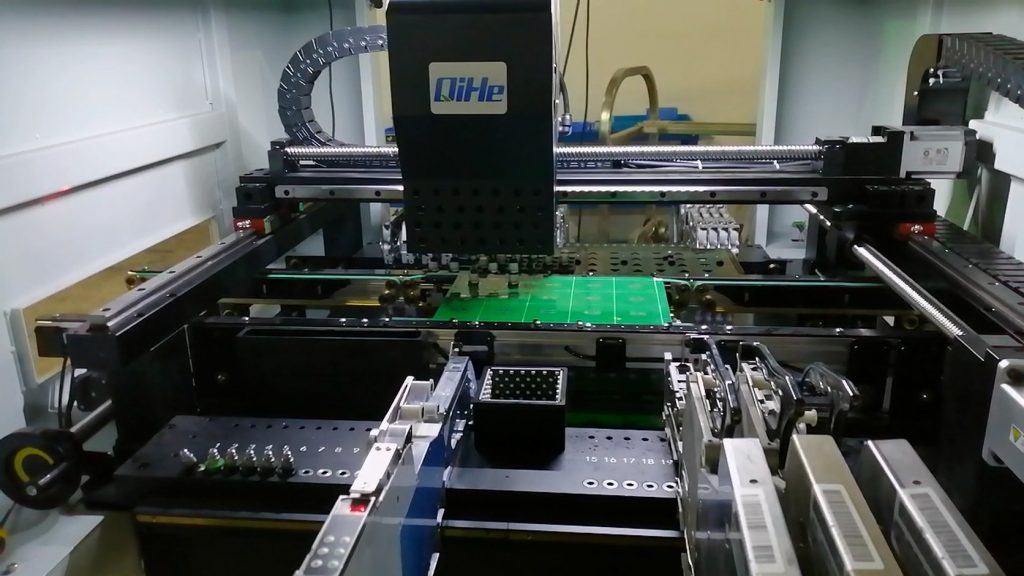

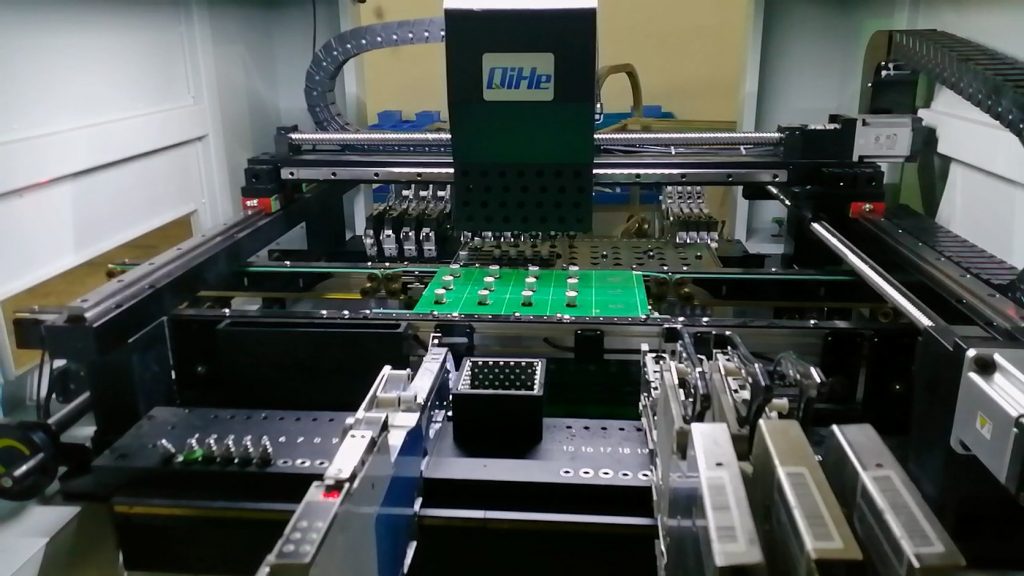

Hello everyone~ this is Alex .Today I am sharing a video of customer feedback. About using QM61 smt pick and place machine in operation SMD Aluminum Electrolytic Capacitor which is 13.5mm height high components.
It should be noted here that you need to pay attention to the path when designing the placement file .
In the process of moving the Aluminum electrolytic capacitor .
it will not hit other components that have already been placed .
Hope this video will help you to solve your doubts .
see you next time!
