Today author from qihe smt pick and place machine sharing you with a optimize support information from third parties openpnp .This is a placeholder for information about running the QiHe TVM920 with OpenPnP. It will be expanded in the future.
Link

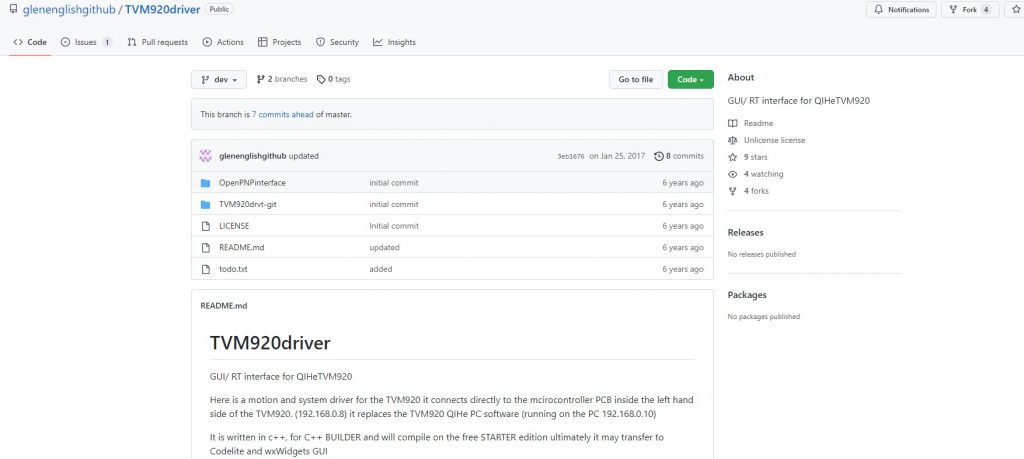

TVM920 support is currently working, but there is work to be done to make it configurable and easy to use. More information can be found at https://github.com/glenenglishgithub/TVM920driver/tree/dev
TVM920driver
GUI/ RT interface for QIHeTVM920
Here is a motion and system driver for the TVM920 it connects directly to the mcirocontroller PCB inside the left hand side of the TVM920. (192.168.0.8) it replaces the TVM920 QIHe PC software (running on the PC 192.168.0.10)
It is written in c++, for C++ BUILDER and will compile on the free STARTER edition ultimately it may transfer to Codelite and wxWidgets GUI
the program supports all operations and diagnostics and correct assymetrical resolution homing
in addition, it has a TCP socket interface to a driver interface I have written for Open PNP. (MyTVMDriver.java) this currently expects to run on the same machine on a loopback port. but this will be configurable to run over networks.
both interfaces (manual and socket) can be simultaneously active
there is a GUI showing feeder openings and head motion vectors and a bunch of diagnostics
Such things like actuator and nozzle names from OpenPNP are translated into commands for the TVM920
Project direction : At the moment, the multi feeder system in OpenPNP is under active development. So far, configuration is getting fine tuned – you MUST read the how to ! Otherwise it may be confusing.

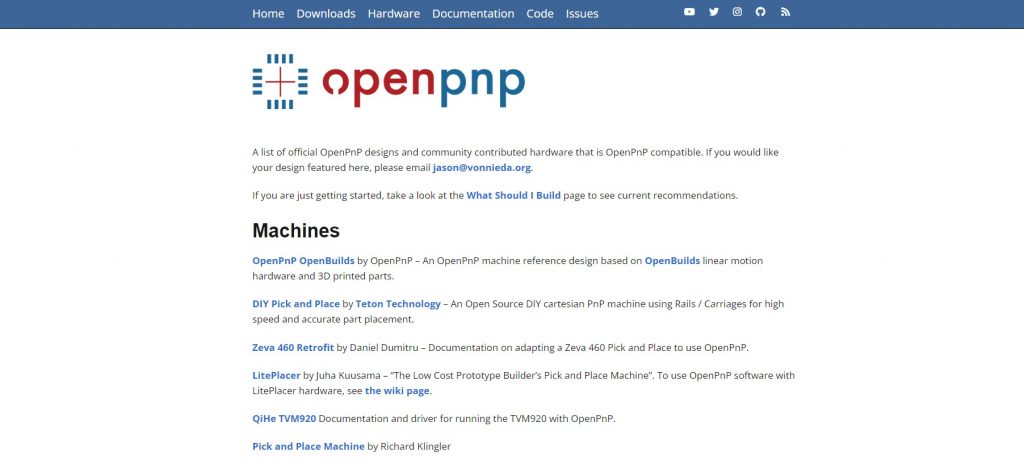

Read more: QiHe TVM920 Documentation and driver for running the TVM920 with OpenPnP-
